Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: Nufiber
Certification: CE
Model Number: GM218MM-T2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: Carton packaging,the products are packed in international standard. Each carton is lined with a polythene sheet ,thus preventing the contents from dampness.
Delivery Time: 1-3 working days after payment
Payment Terms: T/T, Western Union,Credit card
Supply Ability: 10000 pairs per month
Get Best Price Contact Now

Detail Information

Fiber Type: MM Interface: RS232
Optical Connector: SC/FC/ST Distance: 2km
Warranty: 3 Years
High Light:

MM 2km Rs232 To Fiber Converter

,

Rs232 To Fiber Converter External Power

Product Description

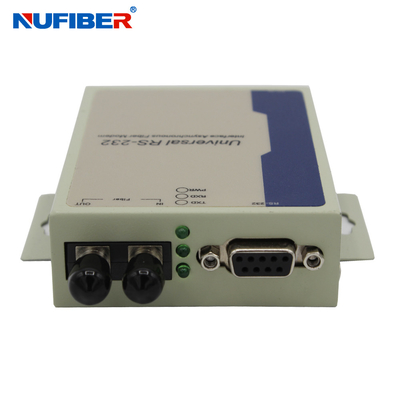

serial to fiber converter RS232 to fiber optic media converter fiber modem MM 2km GM218MM-T2



Overview



GM218 is a sort of more function and economy RS-232 interface optic fiber MODEM. It is the best choice to connect RTU to HOST or SCADA controller. It used Optic fiber as transfer medium, increase the transfer function of system. Communication equipment abstain menace effective to lightning strike, surge, electromagnetism disturb under the secure environment.



Function and Characteristic



a) Support RS-232 interface

b) Asynchronous, point to point, rate up to 120Kbps

c) Support 5V DC input, consumption 2W

d) Internal or external power choice

e) Working wavelength: 1310nm

f) Auto test signal rate, zero delay auto transmit



Performance guideline



Interface: support EIARS-232 standard

Rate: 0-120Kbps

Transmit distance: Rs-232 port multi-mode 2KM, single-mode 20KM

Working environment: 0 to 50



Appearance guideline



Interface type: DB-9 female (RS-232), multi-mode choice ST/SC/FC interface,single-mode choice FC/SC/ST interface

L*W*H: 100mm*69mm*22mm

Shell: Iron

Color: White

Weight: 230g





Pin define



Power interface

DCIN --------- 5V input RS-232 port

IN --------- RS-232 input

OUT --------- RS-232 output

GND --------- Ground

Optical fiber interface

IN --------- Optical fiber input

OUT --------- Optical fiber output



Indicator light explain



Power: Power indication

RxD: Optical fiber interface receive indication

TxD: Optical fiber interface send indication



Applications

MM 2km Rs232 To Fiber Converter Internal Or External Power Choice 0



Product



MM 2km Rs232 To Fiber Converter Internal Or External Power Choice 1MM 2km Rs232 To Fiber Converter Internal Or External Power Choice 2MM 2km Rs232 To Fiber Converter Internal Or External Power Choice 3MM 2km Rs232 To Fiber Converter Internal Or External Power Choice 4MM 2km Rs232 To Fiber Converter Internal Or External Power Choice 5





Ordering Information





Model No. Specification
GM218MM-C2 RS232 TO FIBER,Multimode dual fiber,2KM,SC
GM218SM-C20 RS232 TO FIBER,Single mode dual fiber,20KM,SC
GM218SM-C20/A RS232 TO FIBER,Single mode single fiber,20KM,SC
GM218MM-C20/B RS232 TO FIBER,Multi-mode single fiber,2KM,SC



Packing and Shipping



MM 2km Rs232 To Fiber Converter Internal Or External Power Choice 6MM 2km Rs232 To Fiber Converter Internal Or External Power Choice 7
