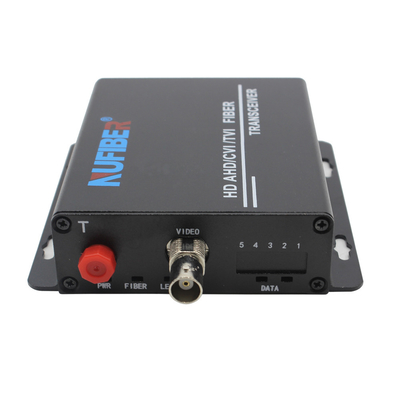

1BNC Optical Audio Converter , AHD TVI 1080p Video Transmitter
Product Details:
| Place of Origin: | China |
| Brand Name: | NuFiber |
| Certification: | CE FCC ROHS |
| Model Number: | NF-1V-T/R-F20-1080P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pair |
|---|---|
| Packaging Details: | 10 pairs/ carton, carton size: 550*320*320mm |
| Delivery Time: | 1-2 work days |
| Payment Terms: | T/T, Western Union,Credit Card |
| Supply Ability: | 1000 pairs per month |
|
Detail Information |
|||
| Product Name: | HD Fiber Video Converter | Color: | Black |
|---|---|---|---|
| Video: | 1xBNC | Fiber Type: | Single Mode Simplex |
| Distance: | 20km | Fiber Connector: | FC (SC/ST Optional) |
| Power Supply: | 5VDC | OEM & ODM: | Accepted |
| Material: | Iron Case | Wavelength: | 1310nm/1550nm |
| Manufacturer: | Yes | ||
| High Light: | 1BNC Optical Audio Converter,AHD TVI 1080p Video Transmitter,AHD TVI 1080p Optical Audio Converter |
||
Product Description
HD-CVI AHD TVI 1080P Fiber Coaxial Video Converter 1BNC 1 Fiber Video Transmitter Receiver for HD Cameras
Description
The converter can simultaneously transmit 1ch HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission.
Key Features
| Non-compression coding technology; |
| Automatically identify formats of input videos; |
| Support 1ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable; |
| DC 5V power supply; |
| Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc; |
| Through LED indicators to inform its functional mode; |
| Industrial wide range of operational temperature; |
| Plug and play, simple installation. |
Applications
| City traffic monitoring system |
| Public security, safe city monitoring system |
| Highway security protection, charging system |
|
Building, campus monitoring net Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc) |
| Military monitoring (storehouse, frontier defense, guard, nation defense, etc) |
| electric power, oilfield, television program transmission system |
| Gymnasium (live video, audio transmission) |
Technical Parameters
| Feature | Description | |
|
optical |
Fiber Type | Multi-mode fiber or Single mode fiber |
| Fiber Connector | FC/ST/SC | |
| Distance | 0~80km (Optional) | |
| Wavelength |
Transmitter Tx1310nm, Rx1550nm Receiver Tx1550nm,Rx1310nm. |
|
|
Tx |
Input level | >500mVp-p |
| self-adaption cable equilibrium |
1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m |
|
| Input/Output Impe | 75Ω | |
| Physical Interface | 1/2/4/8/16channel BNC connector | |
|
Rx |
Output level | 1Vp-p |
| Input/Output Impedance | 75Ω | |
| Physical Interface | 1/2/4/8/16 channel BNC connector | |
|
Data |
Transmission Media | Coaxial cable |
| Baud Rate | 1200～9600bit/s | |
| Bit Error Rate | ≤10 | |
| Operation Mode | Half-Duplex | |
| Indicators | LOS,PWR,DATA,VIDEO | |
| Mean time between ailures (MTBF) | ＞100 000 hours | |
|
General |
EPS | DC5V |
| Power Consumption | ≤5W | |
| Operation temperature | 0℃~75℃ | |
| Operation Humidity | 10%～90% | |
| Atmospheric Pressure | 86kpa~106kpa | |
| Mounting Method | Wall-mounted | |
Products Show
Connection Diagram
Packing&Shipping Method
