Product Details:

Place of Origin: China
Brand Name: NuFiber
Certification: CE FCC Rohs
Model Number: NF-S204C20

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 20pcs/carton, carton size: 660*315*335mm
Delivery Time: 1-3 work days after payment.
Payment Terms: L/C, T/T, Western Union, Credit Card
Supply Ability: 5,000 pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Fiber Ethernet Switch Material: Iron Case
Interface: 2 Fiber Port+ 4 Rj45 Port Fiber Type: Single Mode Dual Fiber
Speed: 10/100Mbps Power Supply: DC5V 2A
OEM&ODM: Accepted Fiber Connector: SC/FC/ST
Warranty: 3 Years Distance: 20km
Working Temperature: 0 °C To +70 °C
High Light:

Iron Case UTP Fiber Ethernet Switch

,

10 100Mbps 4 Port Ethernet Switch

,

Fiber Ethernet Switch 10 100Mbps

Product Description

10/100M 4 port UTP+2 fiber port dual fiber SM 1310nm 20km optical fiber ethernet switch

Model: NF-S204C20

Description

This Fiber Ethernet switch has 4 10/100M UTP ports and 2 100M fiber port. It converts 10/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet fiber signals. This converter has the ability to transmit up to 2 kilometers for multi-mode fiber and up to 120 kilometers for long-haul single mode fiber between a LAN switch, file server and another networking device. In addition, LED indicator lights fully monitor the converter's operational status making observation and diagnoses easy.

Key features:

1. 4 10/100Base-T RJ45 ports and 2 SC fiber port.

2. It can convert Optical-Electric Ethernet signals between 10/100M UTP ports and 100M optical fiber ports and switch Ethernet signals between port and port.

3. Converts optical/electrical Ethernet signals between 10/100M UTP ports and 100M optical fiber ports

4. 10/100M auto-negotiation in TP port, maximum speed to 20/200M (full-duplex)

5. Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control

6. Store and forward switching mechanism

7. Supports MAC self-learning

8. Automatic MDI/MDI-X configuration

9. Built-in IC protection against electrostatic discharge during lightning strikes.

10.Broadcast storm protection

11. LED link status indicator for activity, full/half duplex, speed, and power on diagnostic function



Technical Specifications :



Standards IEEE802.3, IEEE802.3u, IEEE802.3x
Number of Ports 4 Port 10/100Base-Tx and 2 Port 100Base-Fx
Transmission Rate 10 Mbps: 14880 pps, 100Mbps: 148800 pps
Switching Mode Store-and-Forward
Jumber Frame 1916 Bytes
Flow Control Mode IEEE 802.3x full-duplex flow control and back pressure flow control
LED Status Indicator LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function
Cable Support 10Base-T: 3, 4 or Cat 5 shielded / unshielded twisted pair, max 100 meters
100Base-TX: Cat 5 shielded / unshielded twisted pair, max 100 meters
100Base-Fx: 8.3 μm, 8.7 μm, 9 μm and10 μm on single mode fiber and 50, 62.5 and 100 μm on multi-mode fiber
Power Supply AC: 100 V to 240 V or DC: 5V 2A
Operating Temperature 0 °C to +70 °C
Storage Temperature -20 °C to +80 °C
Storage Humidity 5% to 90% RH

Order Information:

NF-M204C05 4*10/100M RJ45 Port + 2*FX port (MM, 2km)
NF-S204C20 4*10/100M RJ45 Port + 2*FX port (SM, 20km)
NF-S204C20A/B 4*10/100M RJ45 Port + 2*FX port (SM, 20km) BiDi

Connection Diagram:

Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 0

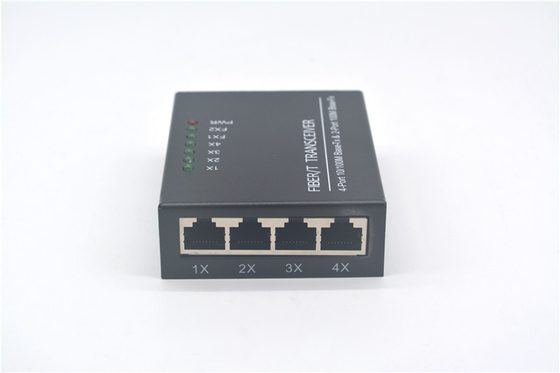

Product show:

Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 1Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 2Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 3Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 4



Factory show:

Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 5



Packing & Shipping:

Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 6

Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 7



Clients Feedback:





Iron case UTP Fiber Ethernet Switch , 10 100Mbps 4 Port Ethernet Switch 8
