Product Details:

Place of Origin: China
Brand Name: NuFiber
Certification: CE FCC Rohs
Model Number: NF-S1004C20

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 40pcs/carton, carton size: 55.6*32.8*43.5cm
Delivery Time: 1-3 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Gigabit Fiber Ethernet Switch Material: Iron Case
Ports: 4 Rj45 +1 Fiber Port Speed: 10/100/1000Mbps
Power Supply: DC5V 2A OEM&ODM: Accepted
Fiber Connector: SC/FC/ST Optional Fiber Type: Single Mode Dual Fiber
Working Temperature: 0 °C~ +70 °C Warranty: 3 Years

Product Description

4*10/100/1000Base-Tx to 1*1000Base-Fx , SM dual fiber SC 1310nm 20km, Including external power Adapter DC5V/2A

Model: NF-S1004C20



Description:

This Gigabit Ethernet Fiber Switch has 4 10/100/1000M UTP ports and 1 fiber port or 1 1000M SFP slot. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.

Key features:

► Converts optical/electrical Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports

   ► Auto negotiation function supports UTP ports to auto 10/100/1000M and Full duplex/Half Duplex

► Broadcast storm protection

► Supports the max 1536 bytes frame

► Small power consumption (3W), low heat, good stability





Technical Specifications:



Standards IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX
Number of Ports 4 Port 10/100/1000Base-Tx and 1 Port 1000Base-Fx
Transmission Rate 10 Mbps: 14880 pps, 100Mbps: 148800 pps, 1000Mbps:1488000 pps
Switching Mode Store-and-Forward
Flow Control Mode IEEE 802.3x full-duplex flow control and back pressure flow control
MAC address 1K
Frame buffer memory 512Kb RAM
Bandwidth 12G, can be transmitted to achieve non-blocking wire-speed
LED Status Indicator LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function
Cable Support UTP cable: 3, 4 or Cat. 5,cat6 (the max distance up to 100m)
Fiber cable:
Multi-mode Fiber: 50/125, 62.5/125μm(the max distance up to 550m)
Single mode Fiber: 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
Power Supply AC100 ~240V, 50~60Hz; DC5V 2A
Operating Temperature 0 °C to +70 °C
Storage Temperature -20 °C to +80 °C
Storage Humidity 5% to 90% RH

Order Information:

Model Product description
NF-S1004C 10/100/1000M 4 RJ45 ports + 1-port 1000Base-FX, Dual Fiber, MM, 0.55km, SC
NF-S1004C20 10/100/1000M 4 RJ45 ports + 1-port 1000Base-FX, Dual Fiber, SM, 20km, SC
NF-S1004C20A/B

10/100/1000M 4 RJ45 ports +1-port 1000Base-FX, Single Fiber, SM, 20km, SC

A: TX:1310nm/ RX:1550nm

B: TX:1550nm/ RX:1310nm

NF-A1004F 10/100/1000M 4 RJ45 ports + 1-port SFP slot
NF-S1004C40 10/100/1000M 4 RJ45 ports + 1-port 1000Base-FX, Dual Fiber, SM, 40km, SC
NF-S1004C40A/B

10/100/1000M 4 RJ45 ports +1-port 1000Base-FX, Single Fiber, SM, 40km, SC

A: TX:1310nm/ RX:1550nm

B: TX:1550nm/ RX:1310nm

NF-S1004C60 10/100/1000M 4 RJ45 ports + 1-port 1000Base-FX, Dual Fiber, SM, 60km, SC
NF-S1004C60A/B

10/100/1000M 4 RJ45 ports +1-port 1000Base-FX, Single Fiber, SM, 60km, SC

A: TX:1310nm/ RX:1550nm

B: TX:1550nm/ RX:1310nm

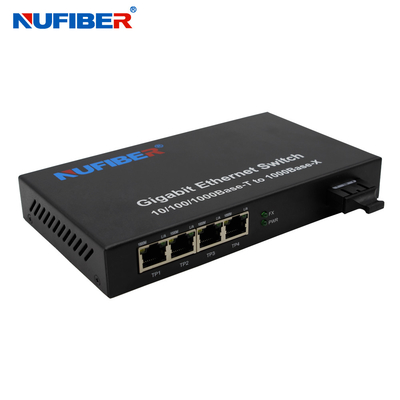

Product show:

1000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 01000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 11000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 21000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 3

Connection Diagram:

1000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 4



Factory show:

1000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 5



Packing & Shipping:

1000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 6

1000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 7





1000M 4-port Rj45+1 fiber port with SM Dual fiber SC 1310nm Optic Fiber Ethernet Switch 8
