8BNC Fiber Video Transmitter And Receiver 1 Year Warranty
Product Details:
| Place of Origin: | China |
| Brand Name: | NUFIBER |
| Certification: | CE FCC ROHS |
| Model Number: | NF-8V-T/R-F20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pair |
|---|---|
| Packaging Details: | 10pair/ carton standard export packing |
| Delivery Time: | 1-3 days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000 pair per month |
|
Detail Information |
|||
| Product Name: | Fiber Optic Transmitter | Size: | 21*13.5*2.5cm |
|---|---|---|---|
| Color: | Black | Electric Port: | 8 Channel BNC |
| Warranty: | 1 Year | Fiber Type: | Single Fiber Single Mode |
| Wavlength: | 1310nm/1550nm | Material: | Iron Case |
| Distance: | 20KM | ||
| High Light: | 8BNC Fiber Video Transmitter And Receiver,20KM Fiber Video Transmitter And Receiver |
||
Product Description
Fiber Coaxial Video Converter 8BNC Fiber Video Transmitter and Receiver for CCTV NF-8V-T/R-F20
Description
NuFiber® Fiber Optic Video Transceiver NF-8V1D-T/R provides for the digital transmission of 8 Channels Composite Video, and 1 return rs485 data, no audio, It is also designed for applications that require control of PTZ cameras.
Single-Mode or Multi-Mode, NF-8V1D-T/R can support FC/PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km or Multi-mode 1km.
Key Features
• Support Point-to-Point or Daisy-Chain connection
• Uncompressed Digital Composite Video over one fiber
• Compatible with all PAL, NTSC,SECAM Video Systems
• Multimode Fiber Support for Distances up to 1.2 km
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Produce according to customer's specifications,providing OEM
Specifications
| • Video | |
| Video input/output impedance | BNC 75 Ω |
| Number of Channels | 8 Channels Video |
| Video input | 1 volt pk-pk (75 ohms) |
| Bandwidth | 5 Hz - 8 MHz |
| Bit Resolution | 8-Bit Digital Transmission |
| Differential Gain | < 1.5% |
| Differential Phase | < 1.5 ° |
| Tilt | < 5% |
| Signal-to-Noise Ratio(SNR) | > 67 dB |
| • Data | |
| Data Format | RS485 |
| Bit Error Rate | 10E-9 |
| • Connectors | |
| Optical | FC (ST, SC Optional) |
| Video | BNC |
| • Electrical & Mechanical | |
| Input Power Requirements | DC5V @ 2A |
| Power Adapter | AC 100V~240V |
| Stand-Alone Dimensions | 210*135*25 mm |
| Card for 4U Rack Dimensions | 198*140*50 mm |
| • Environmental | |
| Operating Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +70°C |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| MTBF | >100,000 hours |

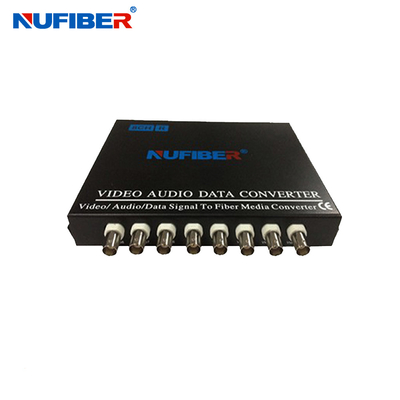

Products Show
Connection Diagram
Packing & Shipping
